Saluran U atau U-ditch adalah salah satu jenis produk beton pracetak yang berbentuk U yang berfungsi sebagai saluran drainase atau saluran irigasi. Saluran U dapat dipasang terbuka maupun tertutup tergantung dengan keperluan lokasi pemasangannya. Selain bentuk U, terdapat juga saluran yang berbentuk V dan setengah lingkaran.

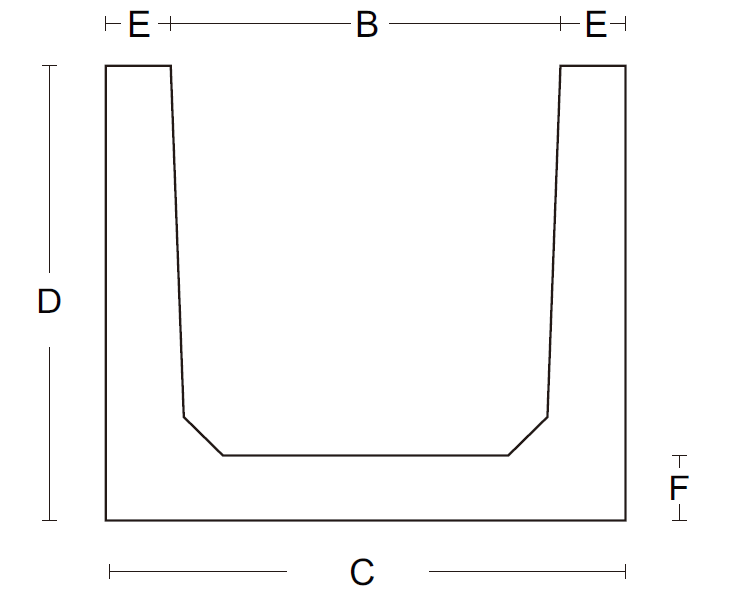

| No | Saluran | Pembesian | A | B | C | D | E | F | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| H | V | |||||||||
| 1 | S1B | - | - | 69 cm | 23 cm | 33 cm | 35 cm | 5 cm | 5 cm | |
| 2 | U30 | - | - | 60 cm | 30 cm | 40 cm | 35 cm | 5 cm | 5 cm | |
| 3 | U35 | - | - | 60 cm | 35 cm | 45 cm | 50 cm | 5 cm | 5 cm | |
| 4 | U40 | - | - | 60 cm | 40 cm | 50 cm | 45 cm | 5 cm | 5 cm | |
| 5 | U40 | 6 mm | 6 mm | 60 cm | 40 cm | 50 cm | 45 cm | 5 cm | 5 cm | |
| 6 | U40 | 6 mm | 6 mm | 60 cm | 40 cm | 50 cm | 65 cm | 5 cm | 5 cm | |
| 7 | U40 | 10 mm | 10 mm | 60 cm | 40 cm | 56 cm | 68 cm | 8 cm | 5 cm | |
| 8 | U40 | 10 mm | 10 mm | 120 cm | 40 cm | 56 cm | 68 cm | 8 cm | 8 cm | |
| 9 | U60 | 6 mm | 6 mm | 60 cm | 60 cm | 74 cm | 67 cm | 7 cm | 7 cm | |
| 10 | U80 | 8 mm | 8 mm | 100 cm | 80 cm | 96 cm | 100 cm | 8 cm | 10 cm | |
| 11 | U100 | 10 mm | 10 mm | 100 cm | 100 cm | 118 cm | 135 cm | 9 cm | 15 cm | |
| 12 | U120 | 12 mm | 12 mm | 100 cm | 120 cm | 140 cm | 150 cm | 10 cm | 15 cm | |
| 13 | U150 | 12 mm | 12 mm | 100 cm | 150 cm | 176 cm | 168 cm | 13 cm | 18 cm | |
| 14 | U200 | 12 mm | 12 mm | 100 cm | 200 cm | 240 cm | 170 cm | 20 cm | 20 cm | |
| 15 | U300 | 16 mm | 13 mm | 100 cm | 300 cm | 340 cm | 180 cm | 20 cm | 30 cm | |

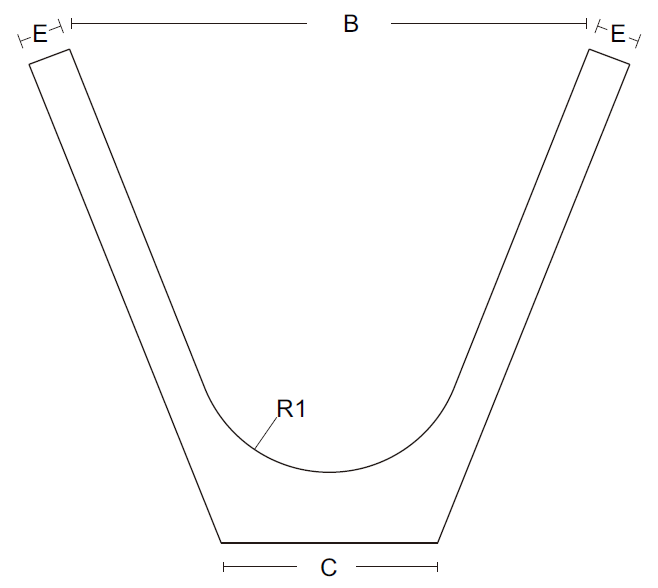

| No | Saluran | Pembesian | A | B | C | D | E | F | Download | |
|---|---|---|---|---|---|---|---|---|---|---|
| H | V | |||||||||

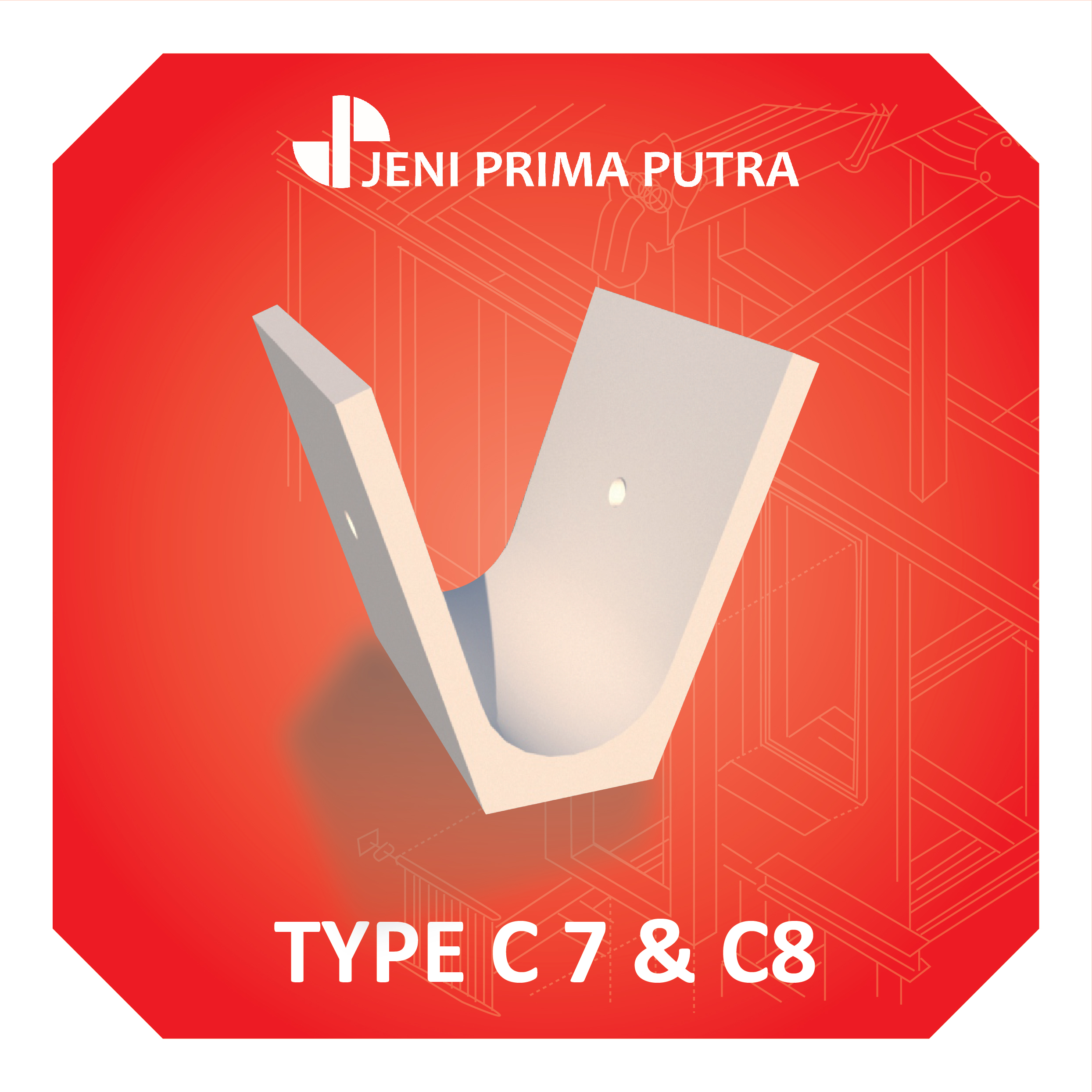

| 1 | C7B | - | - | 60 cm | 40 cm | 20 cm | 26 cm | 5 cm | 6,5 cm | |
| 2 | C7A | - | - | 60 cm | 60 cm | 28 cm | 58 cm | 57 cm | 7,5 cm | |
| 3 | C7 | - | - | 60 cm | 80 cm | 28 cm | 57 cm | 5 cm | 7,5 cm | |
| 4 | C8 | 8 mm | 8 mm | 60 cm | 120 cm | 38 cm | 82,5 cm | 5 cm | 7,5 cm | |
| 5 | C8B | 8 mm | 8 mm | 60 cm | 99,5 cm | 33 cm | 68,5 cm | 5 cm | 7,5 cm | |

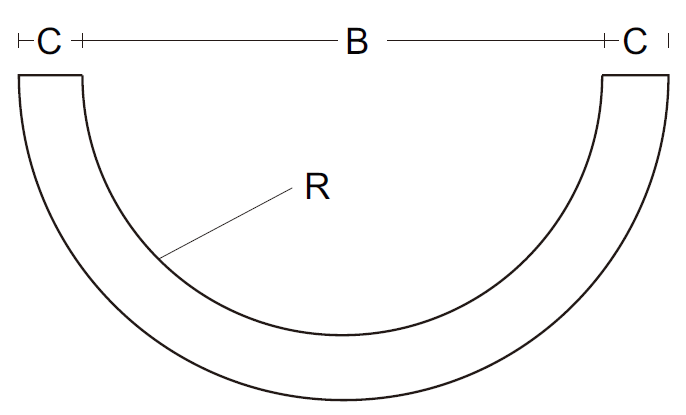

| No | Saluran | Pembesian | A | B | C | Download | |
|---|---|---|---|---|---|---|---|
| H | V | ||||||
| 1 | C1 | - | - | 60 cm | 15 cm | 3 cm | |
| 2 | C1A | - | - | 50 cm | 20 cm | 4 cm | |
| 3 | C1B | - | - | 100 cm | 30 cm | 5 cm | |
| 4 | C1C | - | - | 100 cm | 40 cm | 5 cm | |
